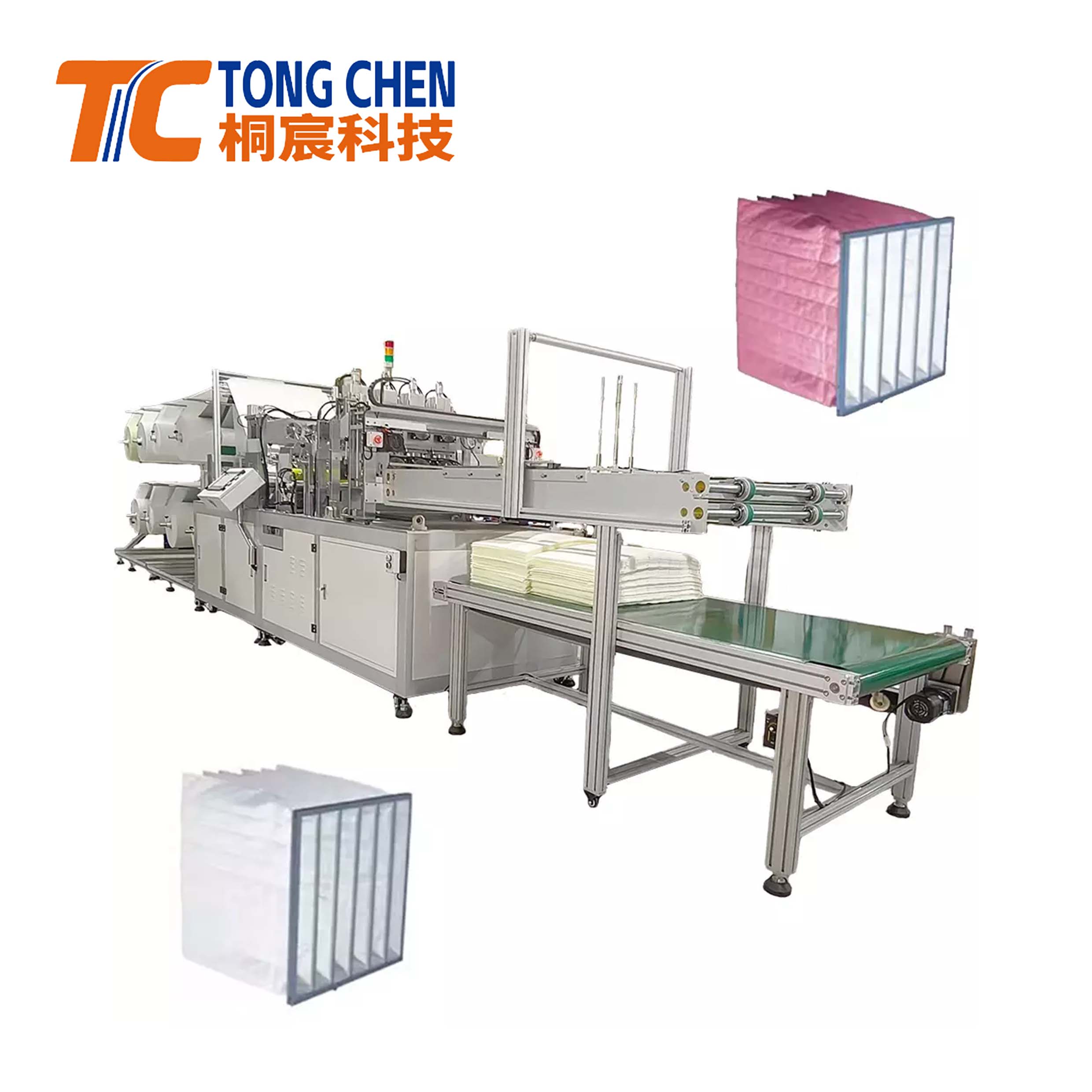

Reasonable mechanical configuration and precise parameter design make this equipment stand out among similar filter bag making machines. The detailed technical specifications and competitive strengths are summarized as follows:
1. Flexible Production Size Range
To adapt to customized production demands of different filter bags, the machine is equipped with a flexible size adjustment system. Its maximum bag width reaches 750mm. In terms of length, it supports two production modes: the single-output mode achieves a maximum bag length of 3600mm, while the dual-output mode hits 1800mm. Whether it is short and compact filter bags for small ventilation equipment or ultra-long filter bags for large industrial air ducts, the machine can complete processing efficiently.
2. Efficient Production Capacity
Production efficiency is a key factor affecting factory output benefits. This equipment has two production modes to meet different processing requirements. The rewinding speed can reach 22 meters per minute; for sheet finished products, the processing capacity is up to 30 pieces per minute. The actual output can be adjusted flexibly according to filter bag size and material thickness, balancing production speed and product quality to avoid material waste.
3. Advanced Ultrasonic Welding Technology
Compared with traditional bonding processes, ultrasonic welding brings unparalleled advantages. The welding seam is smooth, firm and not easy to crack, effectively preventing air leakage and dust leakage of filter bags. Meanwhile, the welding process is environmentally friendly with no glue residue, no chemical pollution, which conforms to the environmental protection production standards of the filtration industry and ensures the cleanliness of air filter products.
4. Optimized Material Loading & Unwinding System
The machine is designed with a large-capacity material winding structure. The maximum winding diameter and unwinding diameter both reach 1000mm (1m). The large-diameter material roll design reduces the frequency of raw material replacement, shortens production interruption time, and greatly improves continuous production efficiency, which is very suitable for mass industrial production.
5. High-precision Servo Motor Configuration
Equipped with 4 high-performance servo motors, including 2 absolute servo motors, the equipment realizes precise control of feeding, cutting and positioning. The servo drive system ensures stable material transmission, accurate cutting size, and low operation failure rate. It effectively avoids defective products caused by position deviation, reduces manual intervention, and lowers the later maintenance cost.
